Description

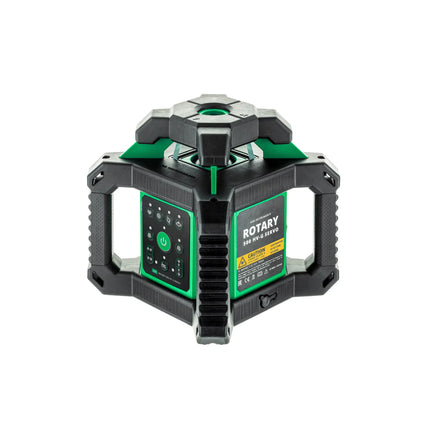

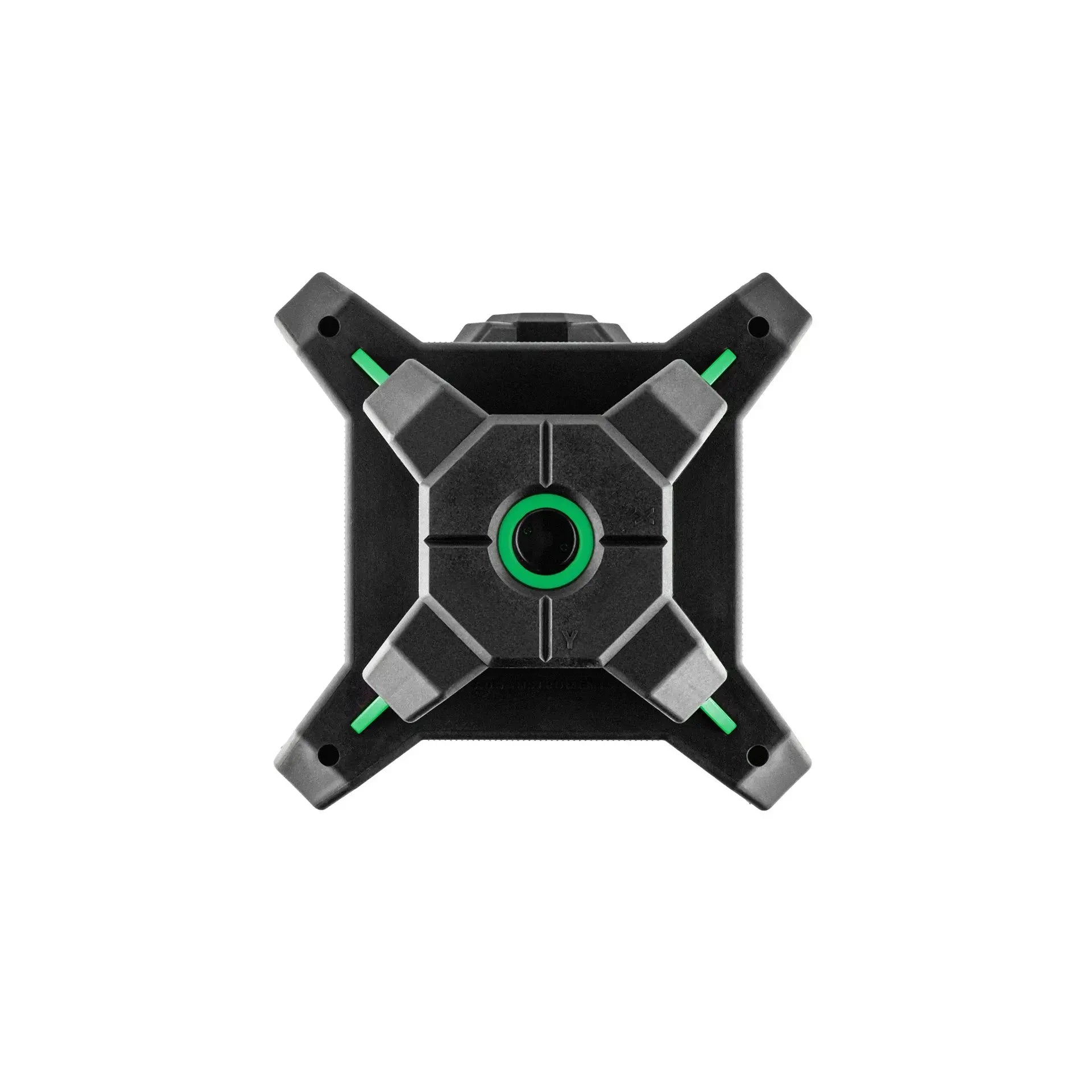

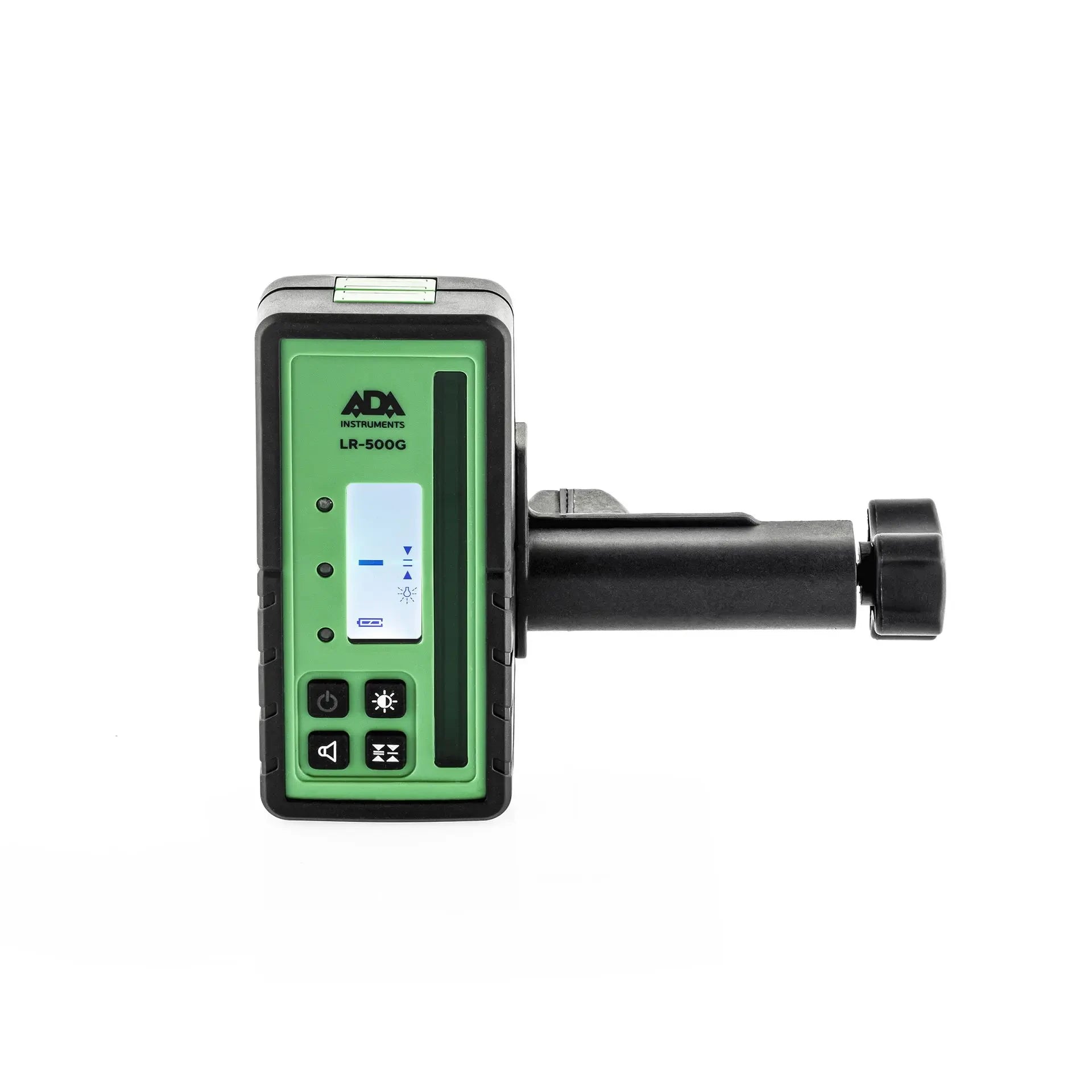

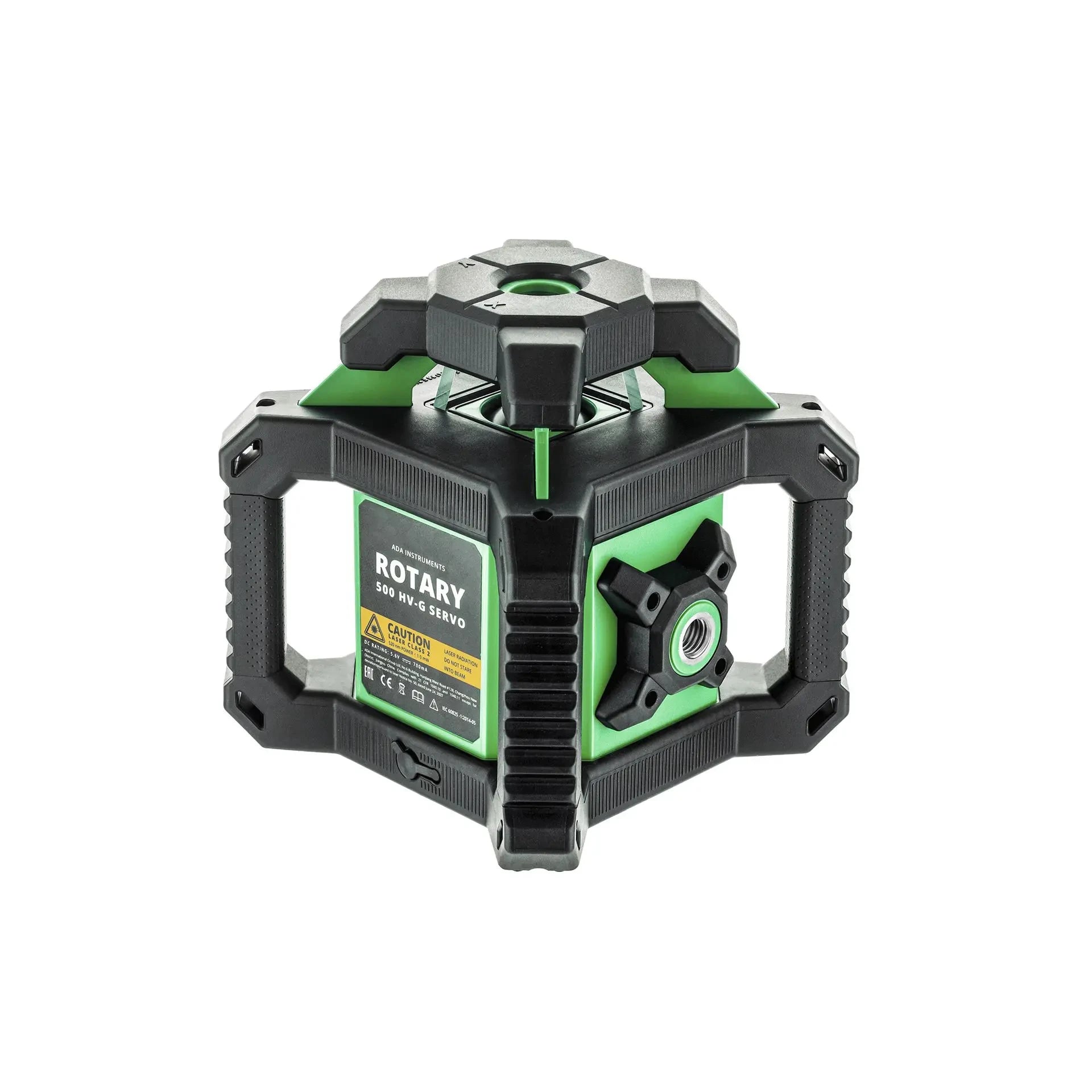

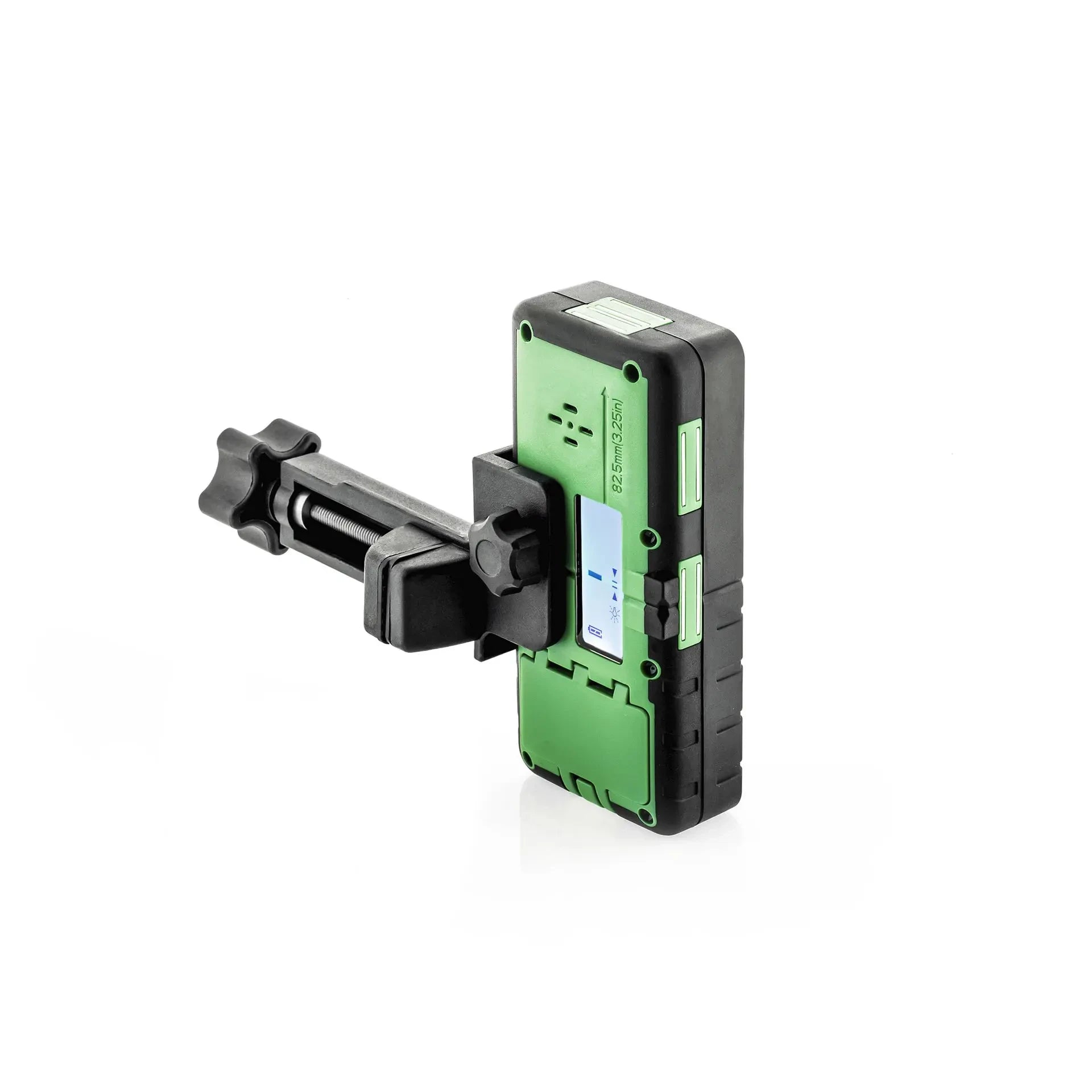

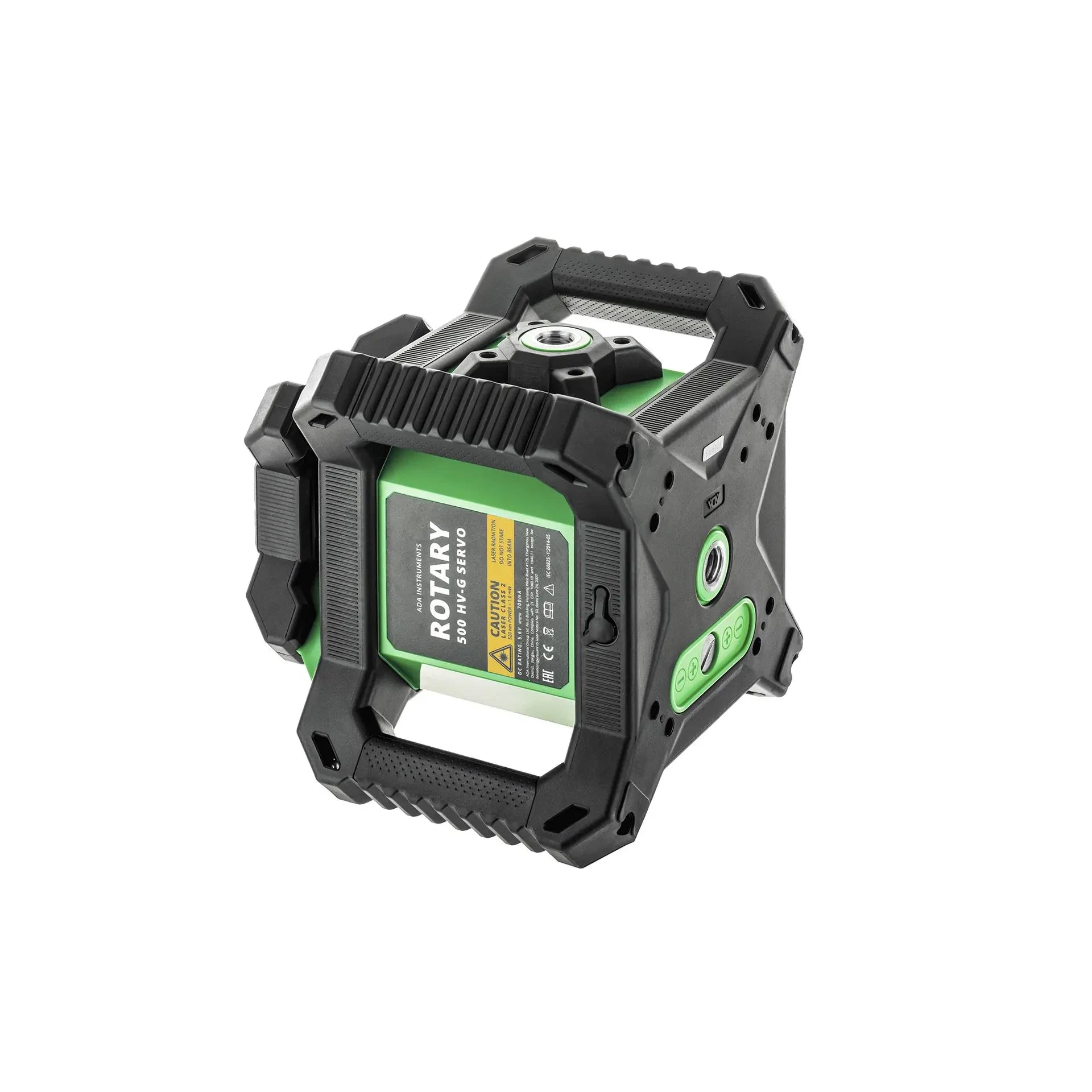

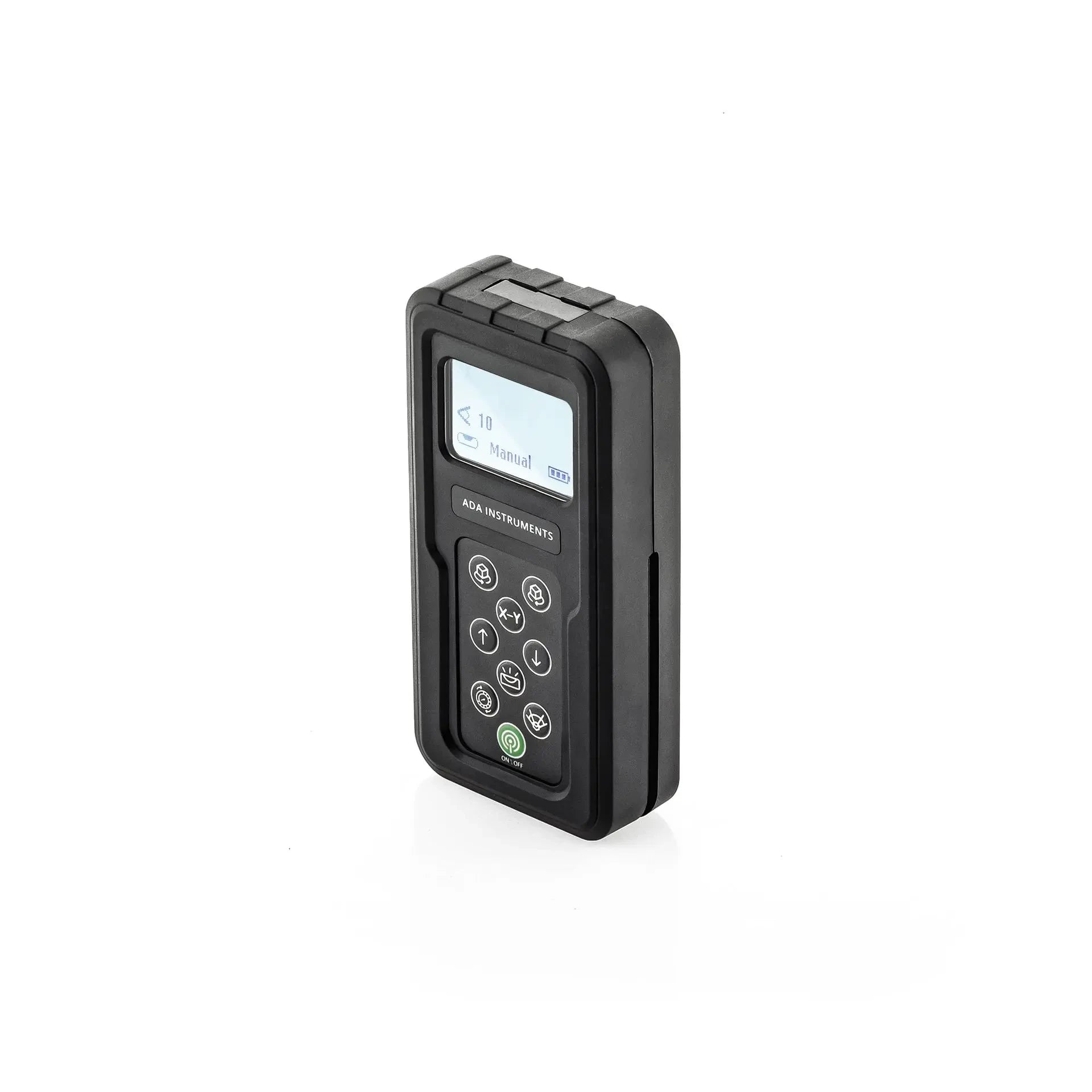

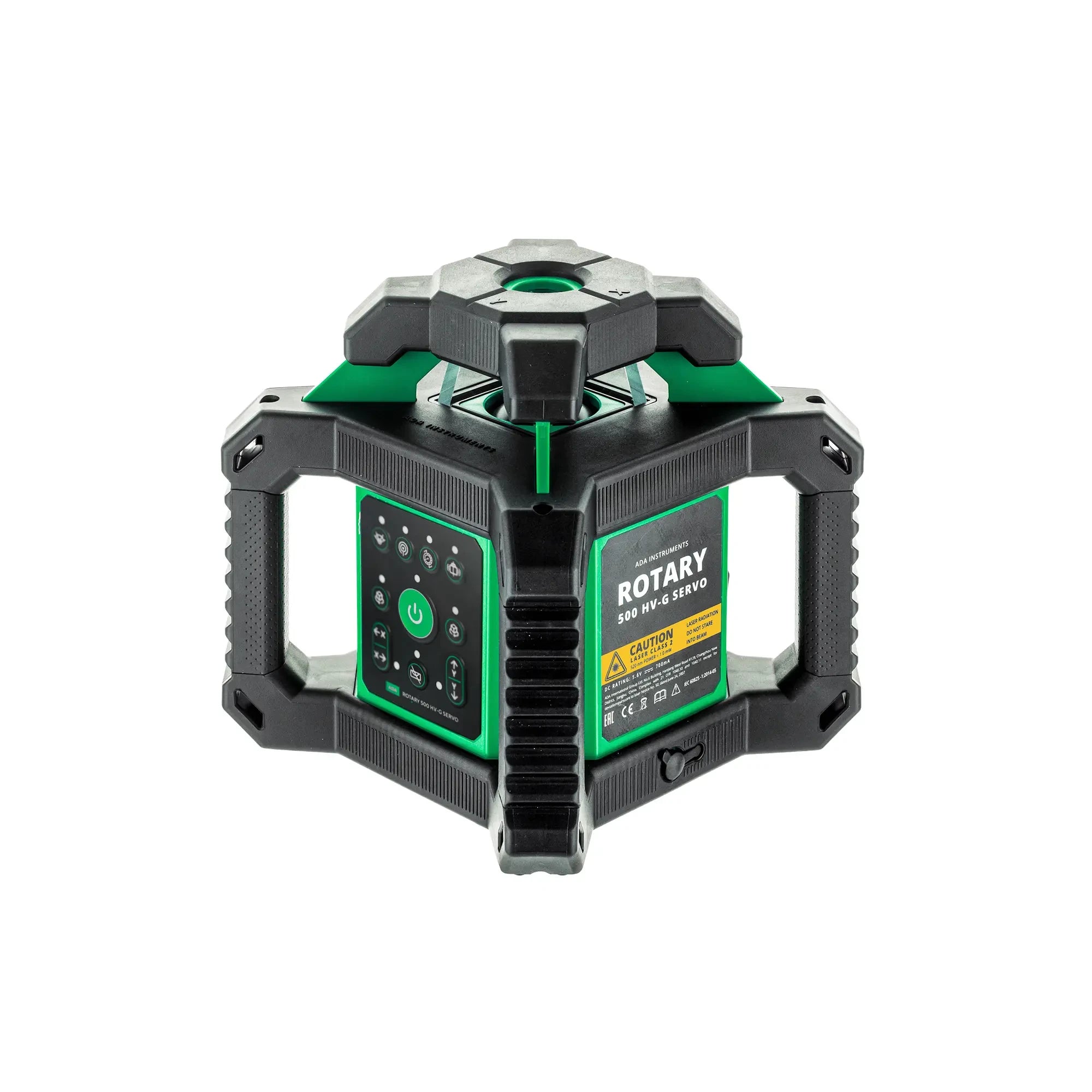

Laser Level ADA ROTARY 400 HV-G Servo is a rotary construction level with electronic compensator on servo drives. The servodrives provide the accuracy of ±0.15 mm/m and the slope adjustment range of up to ±5°. • Green laser line. Green bright laser line helps to make fast and accurate marking without the use of additional equipment. •Self-levelling. The levelling in vertical or horizontal plane is performed automatically with the help of the servodrives due to the sensors of slope. • Manual selection of the slope angle. The instrument’s slope angle adjustment function in the Х and Y angles within the range of 5° makes it possible to plan the level of the slopes in horizontal plane in all directions. • Selection of the speed of rotation of the laser. The speed of rotation of the laser’s emitter is adjustable from 0 to 600 rpm. The higher the speed is, the more frequently the laser dot goes through the rod or receiver at a long distance • Scan mode is intended for operation in a certain sector. The sector is variable from a dot up to 180°. • Remote control panel. It is convenient to use remote control panel within the range of up to 20 metres. It is unnecessary to come up to the laser level to change operating modes. • Universal mount 5/8" will make it possible to place ADA ROTARY 400 HV-G Servo on a vertical surface (wall) or install it onto a tripod for vertical marking. INCLUDES: • Rotating laser • Receiver • Mount of receiver • Remout control • Laser target • Laser glasses • Rechargeable batteries • Charger • Plastic case • Operating manual
Manufacturer: ADA Instruments | Laser type: 1H (360°) or 1V (360°) | Maximum measurement with receiver, m: 400 | Accuracy, mm/m: 0,15 | Protection class: IP65 | Energy source: 4 АА / 1.5 V baterijos | Weight, kg: 2,4 | Beam colour: Green | Suitcase or bag included: Yes
