Description

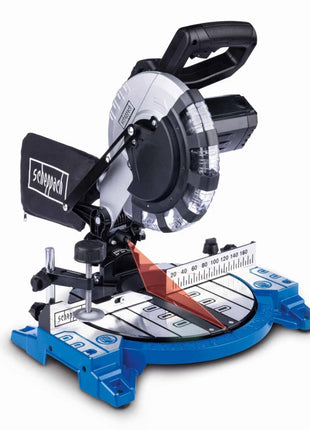

• Precise sliding cross-cut mitre saw for reliable cutting of skirting, timber joists
or laminate or for angular cuts
• High-performance 1500 W motor for versatile use
• Carbide saw blade, 210 x 30 x 2.6 mm / 48 teeth
• Cutting width at 90° up to max. 120 mm / at 45° up to max. 80 mm
• Cutting height at 90° max. 60 mm / at 45° up to max. 35 mm
• Saw blade fully enclosed by guard for maximum work safety
• Work piece supports on both sides allow processing of long work pieces
• Integrated laser ensures precise cuts

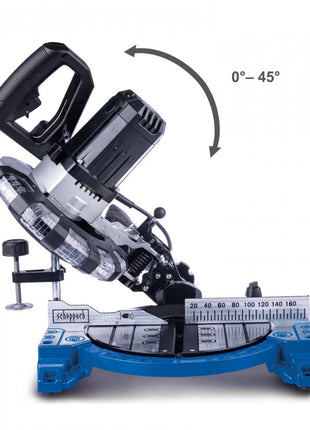

• Saw head can be angled to the left up to 45°
• Work piece clamp secures timber during the sawing process

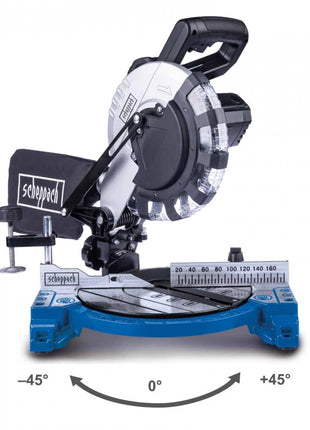

• Rotary disc can be angled to 45°
Blade Ø 210 mm
Motor speed 4900 rpm
Bevel type 1 x 45°
Mitre capacity 45° left to -45° right
Cross cut at 90° 120 x 60 mm
Mitre cut at 45° 80 x 35 mm
Mitre slots 45-30-22.5-15-0-15-22.5-30-45°
Motor 220 – 240 V~
Engine power 1500 W
